Thumbnail Filmstrip of Black 10 LED Headlight For 2013-2021 Kenworth T680 - Passenger Side Images
Item No.35744

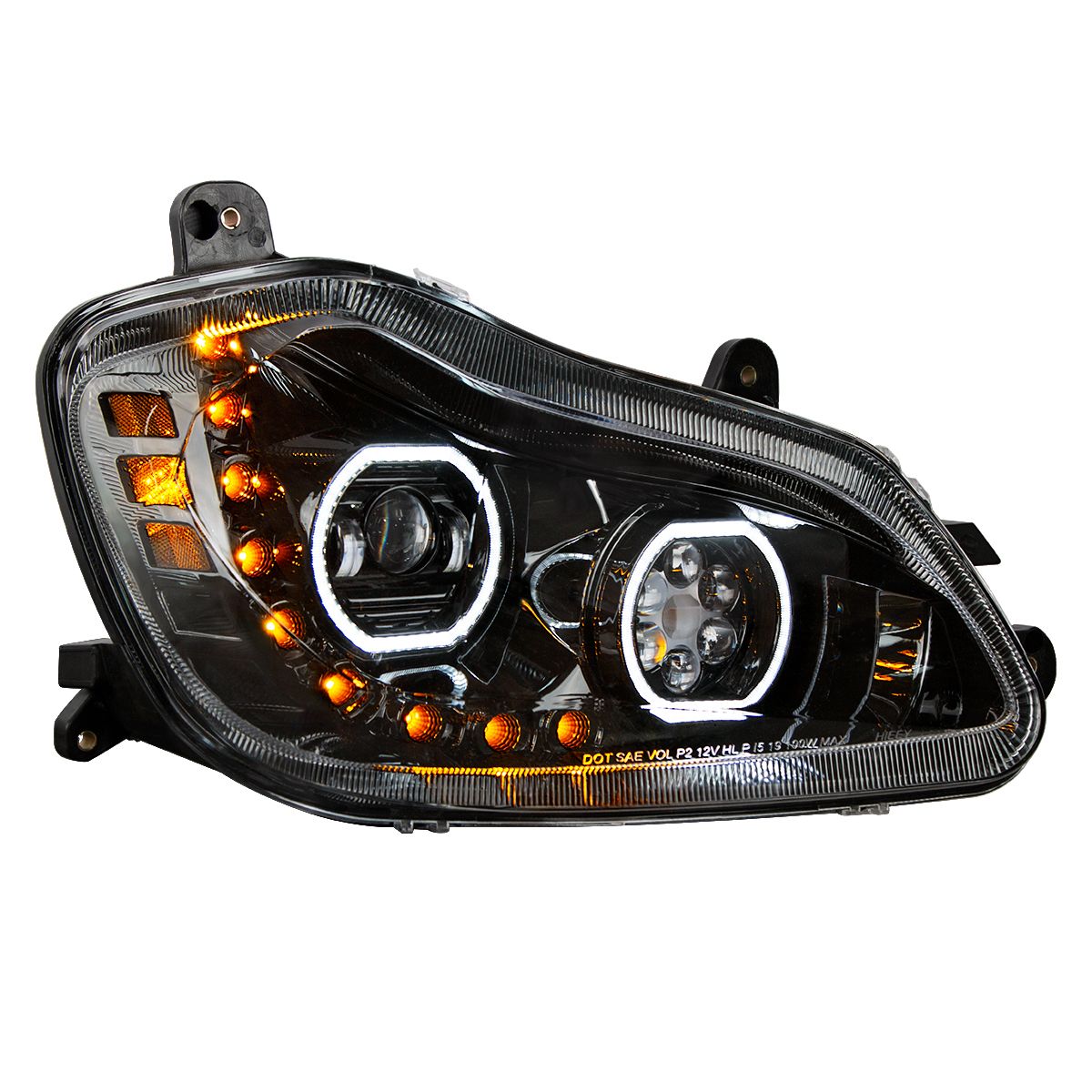

Black 10 LED Headlight For 2013-2021 Kenworth T680 - Passenger Side
Login to view pricing
- All LED 12-24 volt headlight assembly for Kenworth T680 trucks.
- 9 LED amber turn signal with sequential operation.
- 100 LED white halo as Daytime Running Lights.
- 6 LED amber sidemarker light with P2 rating.
- Easy plug-in design, plugs into existing headlight wiring harness.
- Bold and unique headlight design, patent #D907,260.
- LED Low beam: 2100 Lumens, 2.5 Amps @ 12VDC, 1.25 Amps @ 24VDC.
- LED High beam: 3700 Lumens, 7.0 Amps @ 12VDC, 2.75 Amps @ 24VDC.
- LED turn signal light: 600 lumens, 1.69 Amps @ 12VDC, 0.85 Amps @ 24VDC.
- LED position light: 300 lumens, 0.17 Amps @ 12VDC, 0.08 Amps @ 24VDC.
- Removable load resistor pre-installed. Please remove if experiencing light dimming or not turning on.
- DOT/SAE, FMVSS 108.
- Application
- Passenger
- Bar Code No.
- 710270357444
- Finish
- Black Inner Housing
- LED Option
- All LED
- Package Dimensions
- 28.5 " L x 17 " W x 13.25 " H
- Package Qty
- 1 Pack
- Product Series
- Aftermarket
- Product Weight (lbs.)
- 28.00
- Truck Flyer No
- UN210825
- Turn Signal Function
- Sequential
- Voltage
- 12-24V
WARNING: This product can expose you to chemicals including acrylonitrile butadiene styrene, bisphenol and lead, chromium (hexavalent compounds), titanium dioxide, carbon black, Diisononyl Phthalate (DINP), Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
