Thumbnail Filmstrip of Assorted 3/16" Blue,Clear,Green,Red,Yellow Heat Shrink Tubing, 4" Long (10-Pack) Images
Item No.98012

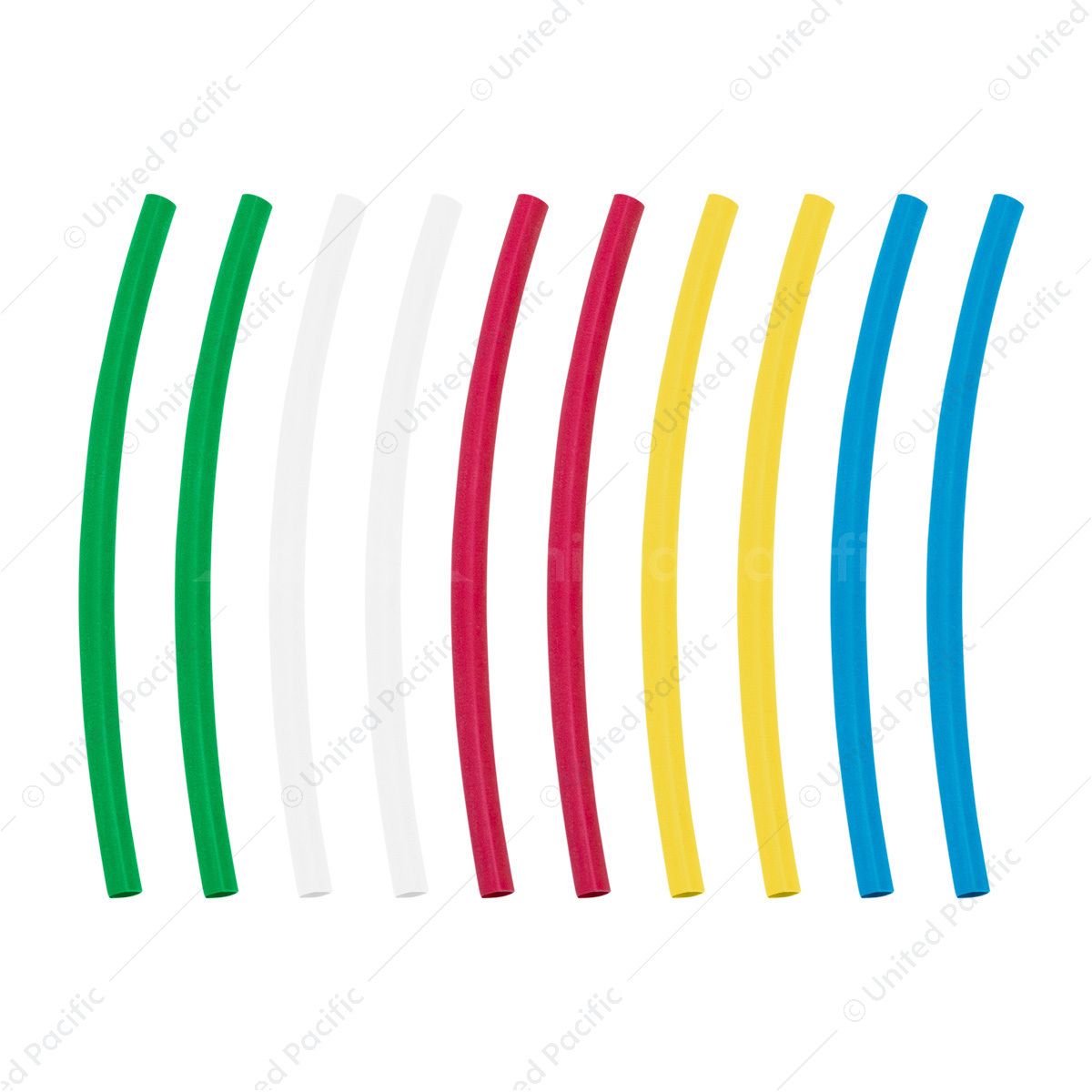

Assorted 3/16" Blue,Clear,Green,Red,Yellow Heat Shrink Tubing, 4" Long (10-Pack)
Login to view pricing
- Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 1, Class 2 (Clear), Class 3.
- Meets requirements of AMS-3636 & AMS-3637.
- RoHS Compliant.
- UL Recognized: File E-39100.
- CSA Certified: CSA LR-38227.
- ABS Approved.
- Continuous Operating Temperature: -55°C (-67°F) to 135°C (275°F) & up to 300°C (572°F) for short durations.
- Shrink Temperature: 121°C (250°F).
- Shrink Ratio: 2 to 1 (shrinks to 1/2 its original diameter).
- Voltage Rating: 600Volts Maximum.
- Cross-Linked Polyolefin Heat Shrink Tubing.
- Single/Thin-Wall.
- Flame-Retardant. Flammability Rating: UL224 / VW-1.
- 4" Tube Length
- NOTE: Clear tubing is NOT flame retardant/rated or UL listed.
- Bar Code No.
- 710270980123
- Inner Diameter
- 3/16"
- Inner Diameter (Decimal)
- 0.19
- Length
- 4"
- Package Dimensions
- 6.5 " L x 3 " W x 0.5 " H
- Product Weight (lbs.)
- 1.00
- Truck Flyer No
- UN230902
WARNING: This product can expose you to chemicals including acrylonitrile butadiene styrene, bisphenol and lead, chromium (hexavalent compounds), titanium dioxide, carbon black, Diisononyl Phthalate (DINP), Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
