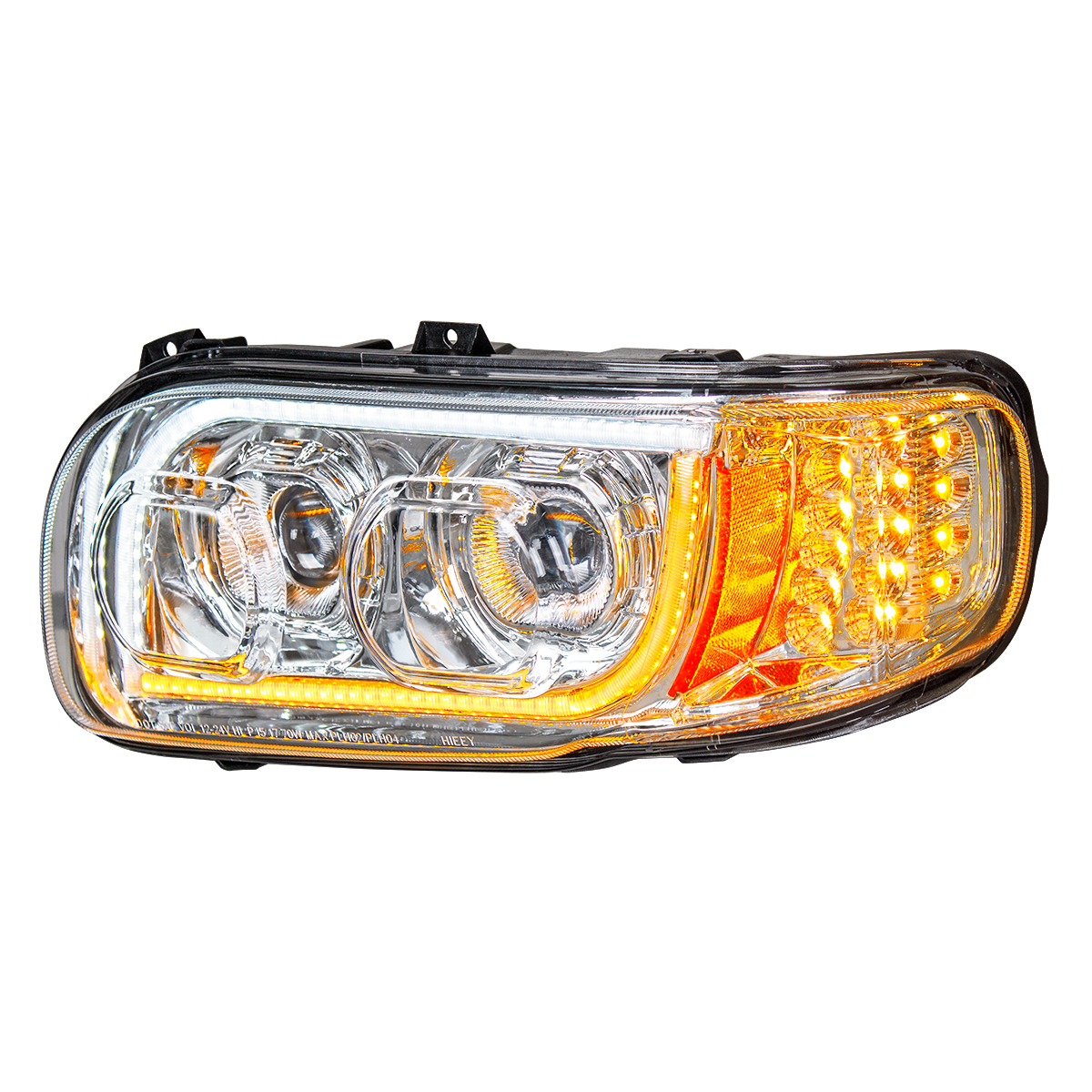

    High Power LED Chrome Headlight With 16 LED Turn & 57 LED Bar For 2008-2024 Peterbilt 389- Driver

    Thumbnail Filmstrip of High Power LED Chrome Headlight With 16 LED Turn & 57 LED Bar For 2008-2024 Peterbilt 389- Driver Images

      Item No.31144

      High Power LED Chrome Headlight With 16 LED Turn & 57 LED Bar For 2008-2024 Peterbilt 389- Driver

      • Bold and unique headlight design. Patent number D866,822.
      • Dual color LED position light bar changes from white to amber when turn signal activated.
      • Easy connection, plugs into existing wiring harness.
      • Low beam: 1,600 Lumens, 1.25 Amps, 12V DC Input.
      • High beam: 2,400 Lumens, 2.50 Amps, 12V DC Input.
      • Also fits Peterbilt 2005-2015 388, 2014-2022 567.
      • Load resistor may be needed on the low beam circuit. The load resistor is added low beam wire pin 5, and the resistor is grounded. Load resistor should be installed on the headlight harness under the hood with air circulation.
      • Note: please do not discard unused factory headlight wiring harness.
      • DOT/SAE, FMVSS 108.
      Application
      Driver
      Bar Code No.
      710270311446
      Finish
      Chrome Inner Housing
      LED Option
      All LED
      Package Dimensions
      19.7 " L x 10.7 " W x 9.7 " H
      Package Qty
      1 Pack
      Product Series
      Aftermarket
      Product Weight (lbs.)
      9.00
      Truck Flyer No
      UN190525
      Voltage
      12V
