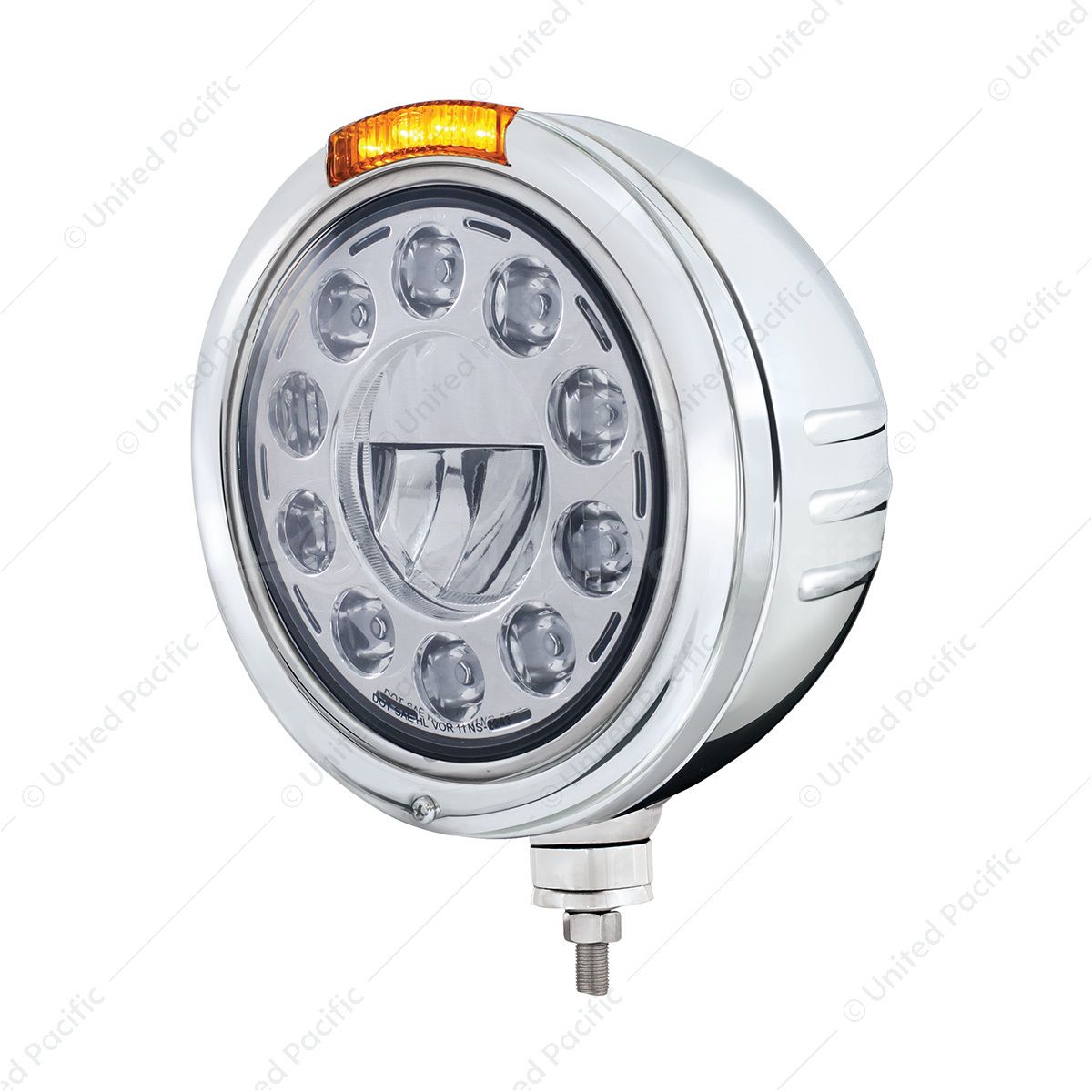

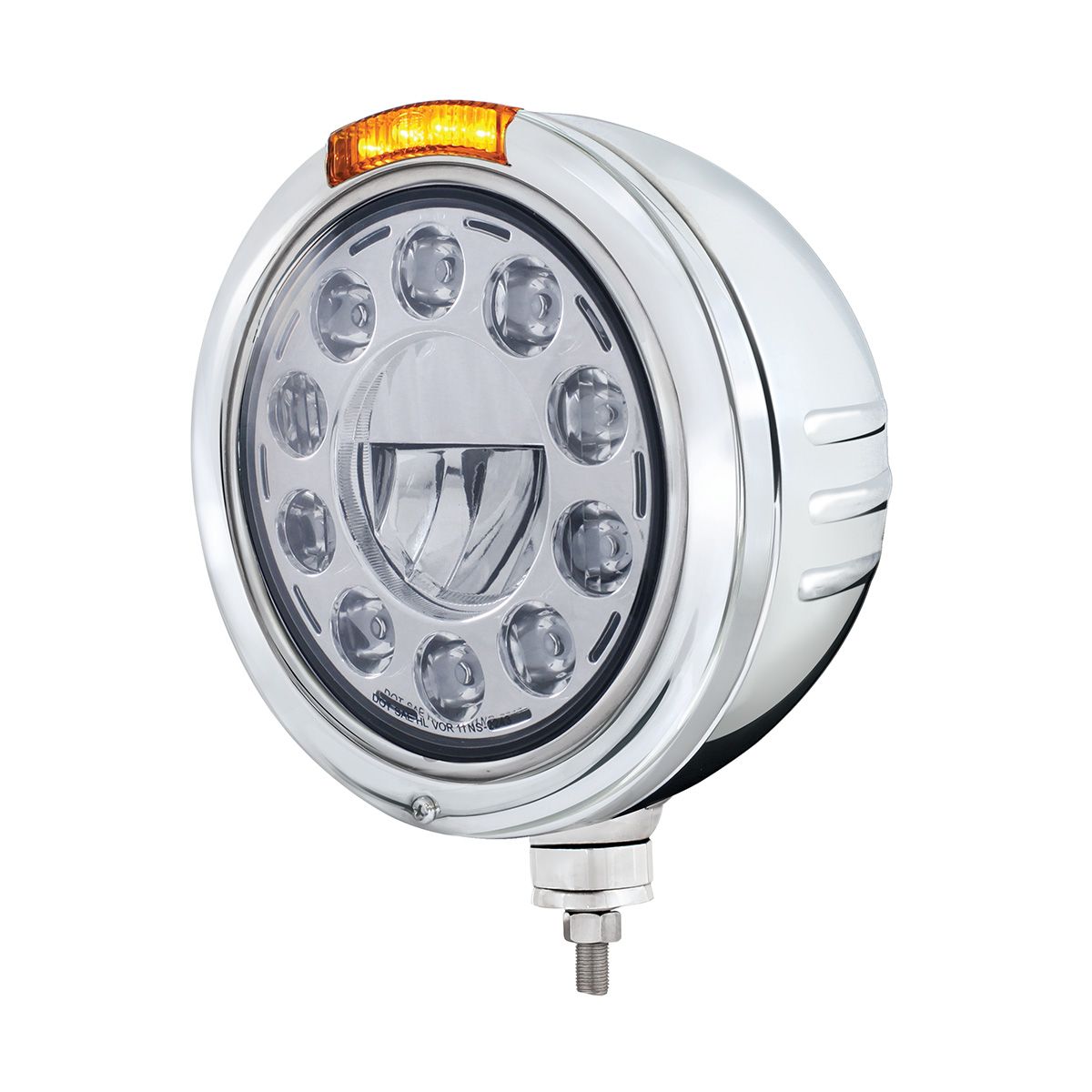

    Stainless Steel Bullet Embossed Stripe Headlight 11 LED Bulb & Dual Mode LED Signal-Amber Lens

    Thumbnail Filmstrip of Stainless Steel Bullet Embossed Stripe Headlight 11 LED Bulb & Dual Mode LED Signal-Amber Lens Images

      Item No.32748

      Stainless Steel Bullet Embossed Stripe Headlight 11 LED Bulb & Dual Mode LED Signal-Amber Lens

      • Highly polished 304 premium grade stainless steel headlight housing with embossed stripes on the side.
      • Fully assembled with LED headlight with crystal clear lens, item #31355.
      • LED headlight features single high power low beam LED and 10 outer LED with chrome housing.
      • Includes polished stainless steel "Bullet" style headlight bezel.
      • Features dual function LED turn signal light built into top of bezel.
      • Universal ball mount fits any application.
      • Black Wire = Headlight Ground (-), Green Wire = Headlight Low Beam [Center LED] (+), Red Wire = Headlight High Beam [Outer Ring LEDs] (+).
      • Metal Housing = Top LEDs Ground (-), Thin White Wire = Top LEDs Low Function (+), Thin Red Wire = Top LEDs High Function (+).
      • Top mounted dual function LED turn signal light with amber lens.
      Bar Code No.
      710270327485
      Finish
      Polished Stainless Steel
      Headlight Size
      7"
      Housing Style
      Bullet Embossed Stripe
      LED Color
      Amber LED
      Lens Color
      Amber Lens
      Light Type
      LED
      Package Dimensions
      11.2 " L x 11.1 " W x 11.1 " H
      Product Weight (lbs.)
      7.00
      Top Signal Option
      LED
      Truck Flyer No
      UN161025
