    Stainless Steel Guide 682-C Headlight H4 & Dual Mode LED Signal - Amber Lens

    Thumbnail Filmstrip of Stainless Steel Guide 682-C Headlight H4 & Dual Mode LED Signal - Amber Lens Images

      Item No.32394

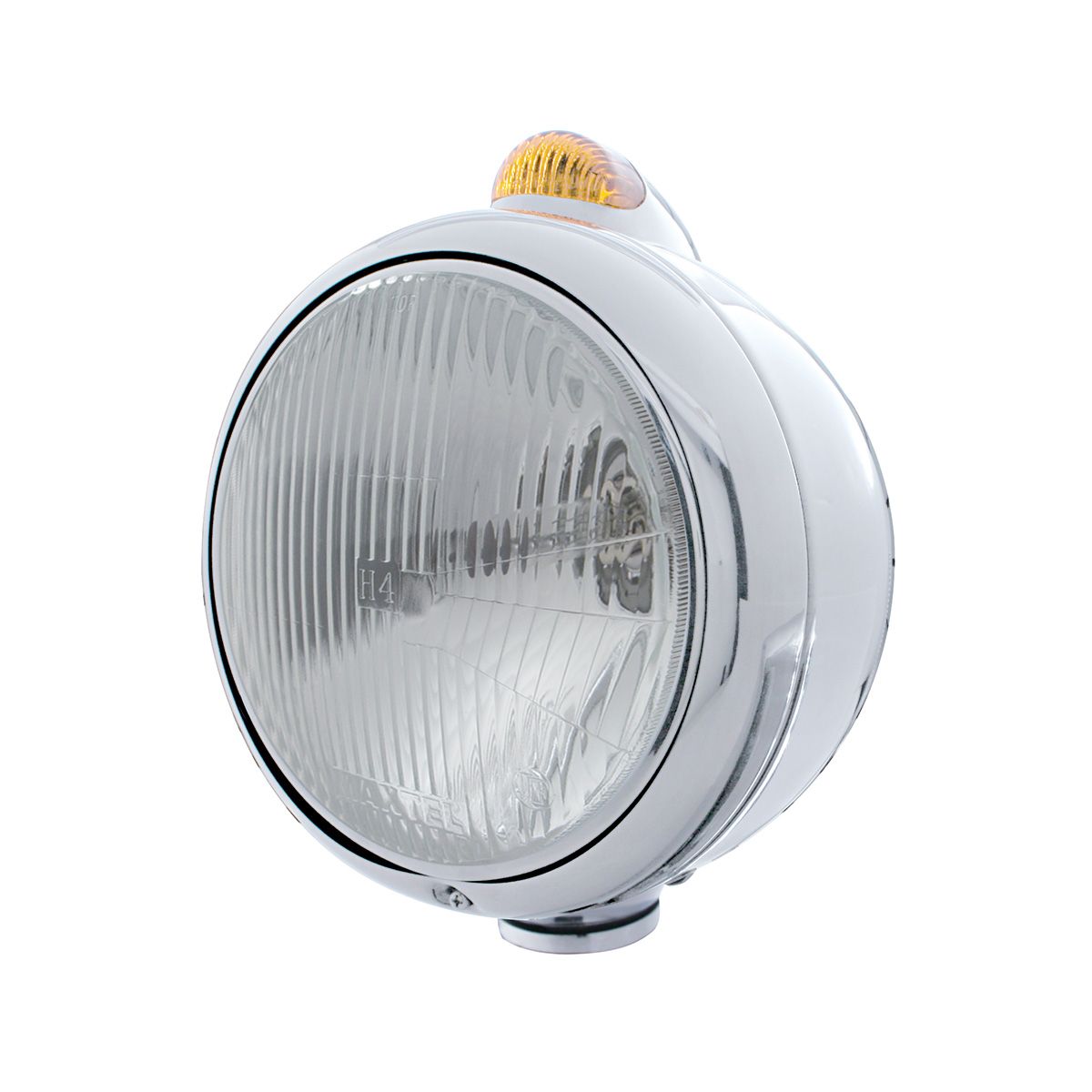

      Stainless Steel Guide 682-C Headlight H4 & Dual Mode LED Signal - Amber Lens

      • Highly polished 304 premium grade stainless steel headlight housing and bezel.
      • Fully assembled with H4 halogen bulb, item #a5023-3.
      • Included housing can be purchase separately, item #32005.
      • Black Wire w/Double Squares = Headlight Beam Ground (-)
      • Green Wire w/Double Squares = Low Beam (+)
      • Red Wire w/Double Squares = High Beam (+)
      • Metal Housing = Top Light Ground (-)
      • Red Wire w/Single Squares = Top Light Low (+)
      • White Wire w/Single Squares = Top Light High (+)
      • Includes top mount 5 amber LED with amber lens light item # 39517b.
      Bar Code No.
      710270323944
      Bulb Replacement Type
      H4
      Finish
      Polished Stainless Steel
      Headlight Size
      7"
      Housing Style
      Guide
      LED Color
      Amber LED
      Lens Color
      Amber Lens
      Package Dimensions
      9.5 " L x 9.4 " W x 9.5 " H
      Product Series
      Guide
      Product Weight (lbs.)
      5.32
      Top Signal Option
      LED
